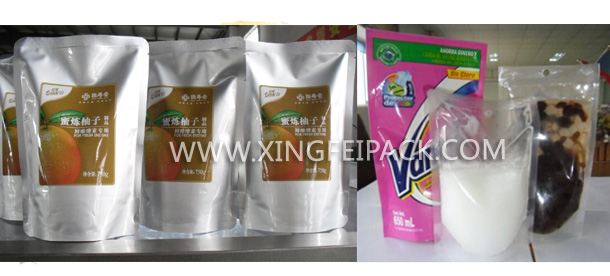

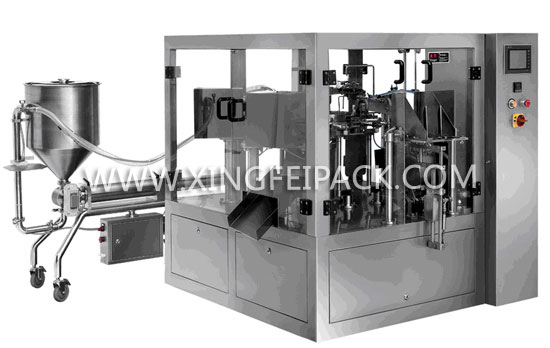

Main Capacity and Application: Automatic Premade Pouch Filling And Sealing Machine is used for the flat bag, standup bag、 bag with zipper.
Application: This machine is suitable filling and sealing for the liquid and paste, such as washing liquid /detergent, yellow wine, sauce, vinegar, juice, beverage, ketchup, chilly sauce, etc.
Character:
1. While the bag size is different, it is easy to operate the machine by using the handle to adjust the width of the bag-nipping claw.
2. By adopting the precise and stable bag-nipping structure and eight working station. The machine has higher speed and wider application.
Technical Parameter
|
包装能力 Capacity |
30-50 bag/min, |
|
袋子尺寸 Bag Size |
(L)100-300mm (W)100-200 mm |
|
包装重量 Filling weight |
Up to1000 g/bag (max) |
|
封口方式 Bag sealing |
热封 Sealing by heat and pressure |
|
电源 Power supply |
AC380V±10%，3-phase 50Hz |
|
使用功率 Power Consumption |
2.0KW |
|
压缩空气 Air Consumption |
0.2m3/min at 5-8 kgf/cm2 |
|
机器重量 Machine Weight |
1200kg |
|
机器尺寸 Dimension |
W×L×H 1140×1500×1560mm |
